Product Overview

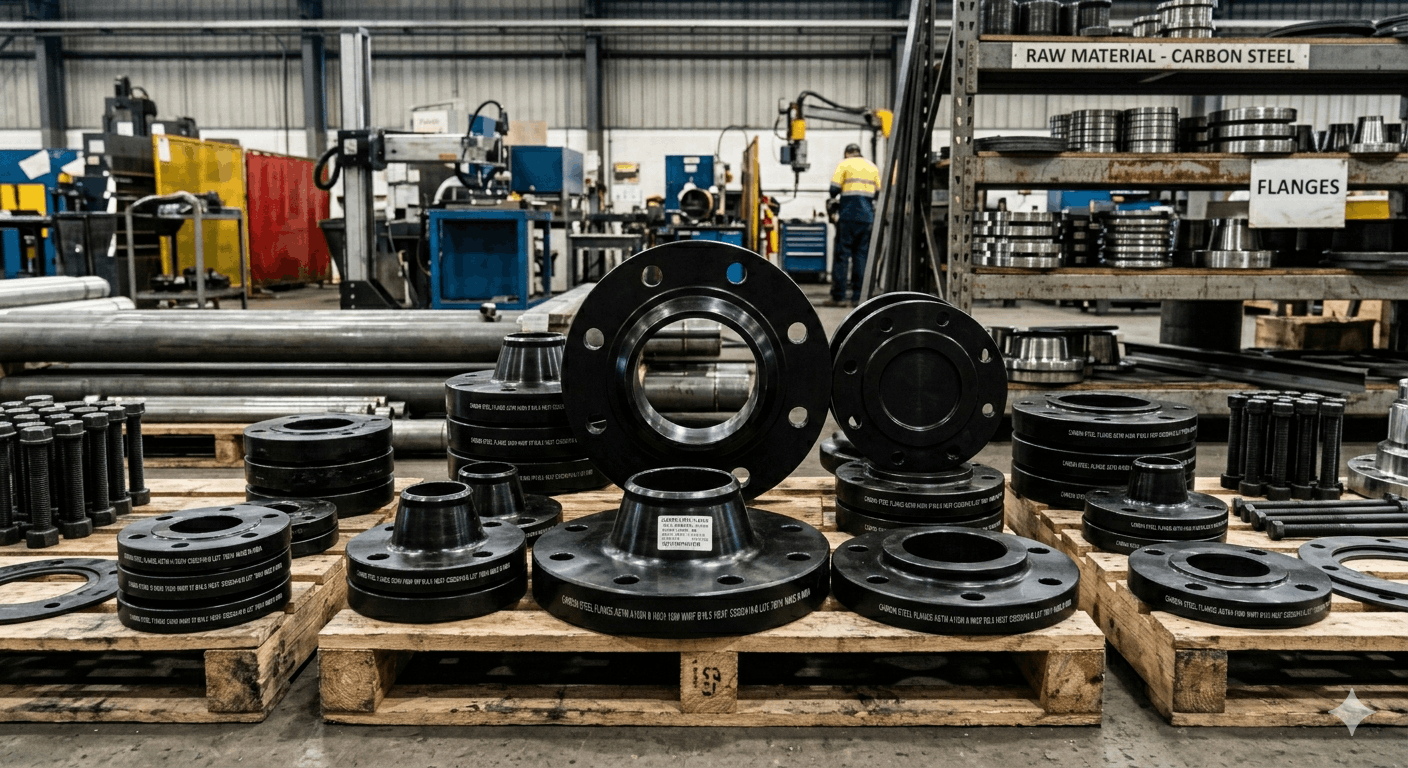

Our Carbon Steel (CS) and Stainless Steel (SS) Flanges, including Anchor and Long Weld Neck Flanges, are manufactured using premium-grade materials to ensure superior performance in demanding industrial environments. These flanges offer excellent resistance to corrosion, heat, and fire, along with exceptional durability.
Stainless Steel (SS) flanges are highly hygienic, easy to clean, and ideal for sanitary applications, while Carbon Steel (CS) flanges are cost-effective, sustainable, and fully recyclable. We also supply flanges in a wide range of standards, materials, and custom specifications through our extensive stock and sourcing network, ensuring prompt delivery.
Technical Specifications
| Category | Details |
|---|---|
| Product Type | CS / SS Flanges, Anchor Flanges, Long Weld Neck Flanges |
| Size Range | 1/2” to 48” |
| Wall Thickness | All schedules including SCH 160 and XXS |
| Facing Types | FF (Flat Face), RF (Raised Face), RTJ (Ring Type Joint) |
| Pressure Class | 150, 300, 600, 900, 1500, 2500 |
| API Pressure Rating | API 3000, 5000, 10000 |
| Standards | ANSI B16.5 / B16.47 Series A (MSS SP-44), ANSI B16.47 Series B, API 6A/6BX |
| Material Grades | ASTM/ASME A/SA 105N |
| ASTM/ASME A/SA 350 LF2 CL 1/2 | |
| ASTM A694 F52 | |
| ASTM/ASME A/SA 516 Gr. 60/65/70 | |
| ASTM/ASME A/SA 182 F304/L, F316/L | |
| Compliance | NACE MR-0175 |
Key Features
| Feature | Description |
|---|---|
| Corrosion Resistance | Suitable for harsh and corrosive environments |
| Thermal Resistance | Performs reliably under high-temperature conditions |
| Durability | High strength and long service life |
| Hygienic Properties | SS flanges are easy to clean and sanitize |
| Sustainability | CS flanges are recyclable and eco-friendly |
| Availability | Wide stock range with forward delivery options |
